architecture viewpoint¶
work product establishing the conventions for the construction, interpretation and use of architecture views (3.1.3.7) to frame specific system concerns (3.1.3.5)

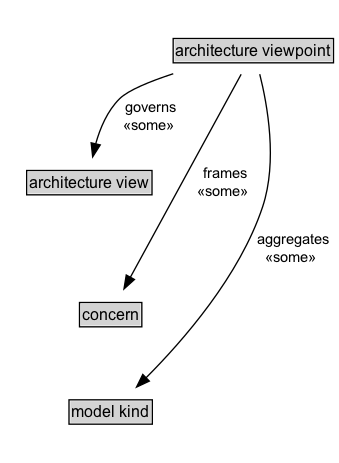

Formalization for architecture viewpoint¶
| Property | Constraint |
|---|---|
| aggregates | some modelKind |
| frames | some concern |
| governs | some architectureView |
Other annotations¶
| Annotation | Value |
|---|---|
| clause | 3.1.3.6 |
| dcterms::source | ISO/IEC/IEEE 42010:2011, 3.6 |
| skos::historyNote | Introduced in ISO/TS 14812:2022 |
| skos::prefLabel | architecture viewpoint |
