level 5 ADS

ADS (3.7.3.10) that is capable of unconditional (i.e. not ODD (3.7.3.2)-specific) operation and providing its own fallback (3.7.3.3), without any expectation that a human driver (3.6.2.3) will respond to a request to intervene

NOTE: Other driving automation levels include "level 1 driving automation" (3.7.3.8), "level 2 driving automation" (3.7.3.9), "level 3 ADS" (3.7.3.11) and "level 4 ADS" (3.7.3.12).

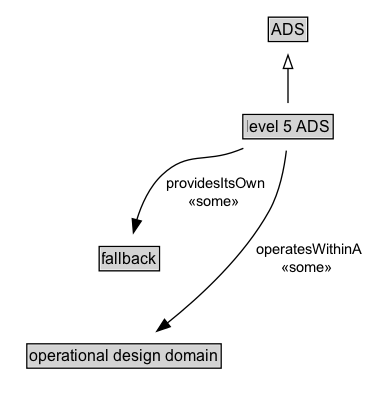

level 5 ADS Diagram

Formalization for level 5 ADS

Property Constraint
operatesWithinA some operationalDesignDomain
providesItsOwn some fallback
subClassOf ads

Other annotations

Annotation Value
altPrefLabel full driving automation
altPrefLabel level 5 Automated Driving System
clause 3.7.3.13
skos::historyNote Introduced in ISO/TS 14812:2022
skos::prefLabel level 5 ADS
