operational design domain¶
set of operating conditions under which a given driving automation system (3.7.3.6) or feature thereof is specifically designed to function
NOTE: The conditions can include environmental, geographical, time-of-day, and/or other restrictions.
EXAMPLE: 1 ADS (3.7.3.10) feature designed to operate a vehicle (3.7.1.1) only on fully access-controlled freeways in low-speed traffic, under fair weather conditions and optimal road (3.3.5.1) maintenance conditions (e.g. good lane markings and not under construction).

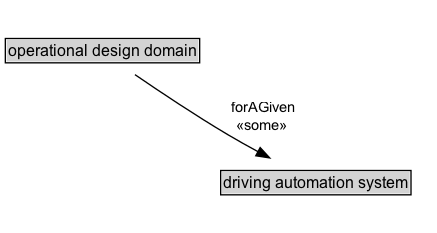

Formalization for operational design domain¶
| Property | Constraint |
|---|---|
| forAGiven | some drivingAutomationSystem |
Other annotations¶
| Annotation | Value |
|---|---|
| altPrefLabel | ODD |
| clause | 3.7.3.2 |
| skos::historyNote | Introduced in ISO/TS 14812:2022 |
| skos::prefLabel | operational design domain |
