PositionConfidenceEllipse¶
A confidence ellipse describing uncertainty of a point position in a horizontal plane.

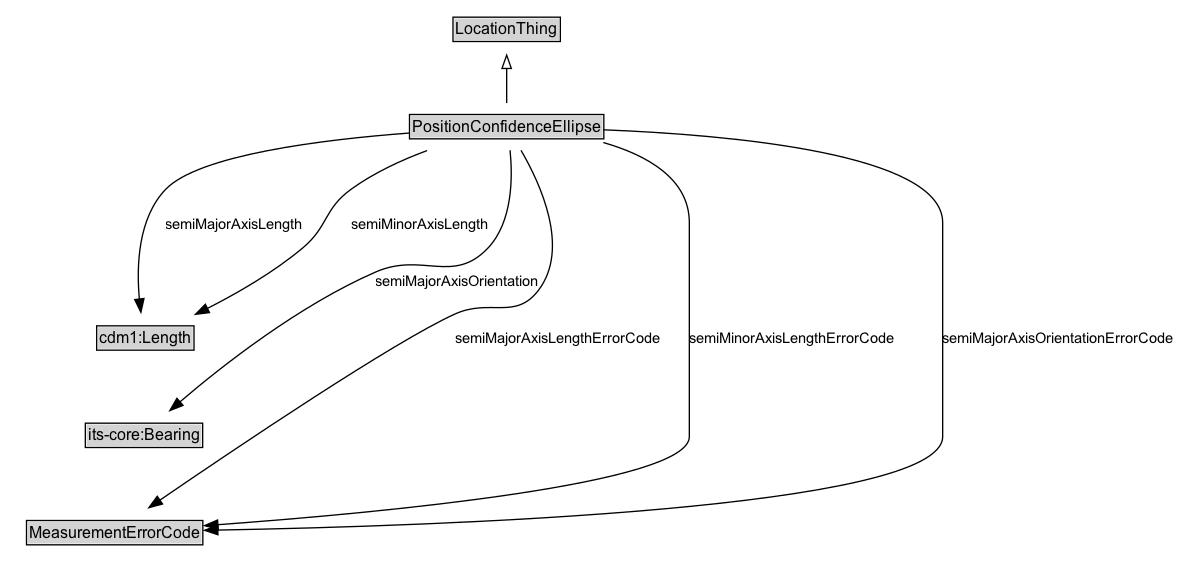

Diagram¶
Formalization for PositionConfidenceEllipse¶
| Property | Constraint |
|---|---|
| semiMajorAxisLength | max 1 cdm1:Length |
| semiMajorAxisLengthErrorCode | max 1 MeasurementErrorCode |
| semiMajorAxisOrientation | max 1 its-core:Bearing |
| semiMajorAxisOrientationErrorCode | max 1 MeasurementErrorCode |
| semiMinorAxisLength | max 1 cdm1:Length |
| semiMinorAxisLengthErrorCode | max 1 MeasurementErrorCode |
| subClassOf | LocationThing |
