InternationalSign¶
A traffic control device that is used to convey information to road users, such as regulatory, warning, or guide signs.
NOTE: The full conceptualization of an InternationalSign includes the conditions and attributes displayed on the sign. In theory, these are redundant with the conditions and attributes of the TrafficRegulation, but could be different (e.g., a sign can omit details or discrepancies can occur).
IRI: https://w3id.org/itsdata/regulation/v1/InternationalSign

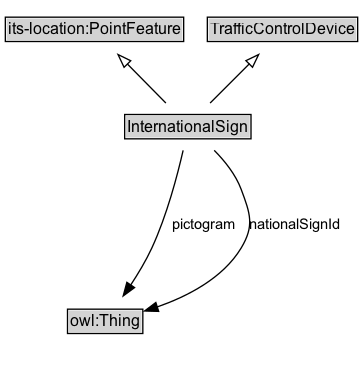

Diagram¶
Formalization for InternationalSign¶
| Property | Constraint |
|---|---|
| hasComponentSign | only InternationalSign |
| hasCondition | max 1 Condition |
| hasContext | only RegulationContextCode |
| hasFeeSchedule | max 1 FeeSchedule |
| hasTextualRestriction | max 1 rdf:langString |
| hasThreshold | max 1 i72:Measure |
| nationalSignId | max 1 xsd:string |
| pictogram | exactly 1 its-core:oidstring |
| subClassOf | TrafficControlDevice |
| subClassOf | its-location:PointFeature |
Other annotations¶
| Property | Value |
|---|---|
| ReqView ID | its-regulation-21 |
| dash:abstract | true |
