TrafficRegulation¶
A traffic regulation is a rule having the force of law that is established by a regulator through a traffic regulation order.
IRI: https://w3id.org/itsdata/regulation/v1/TrafficRegulation

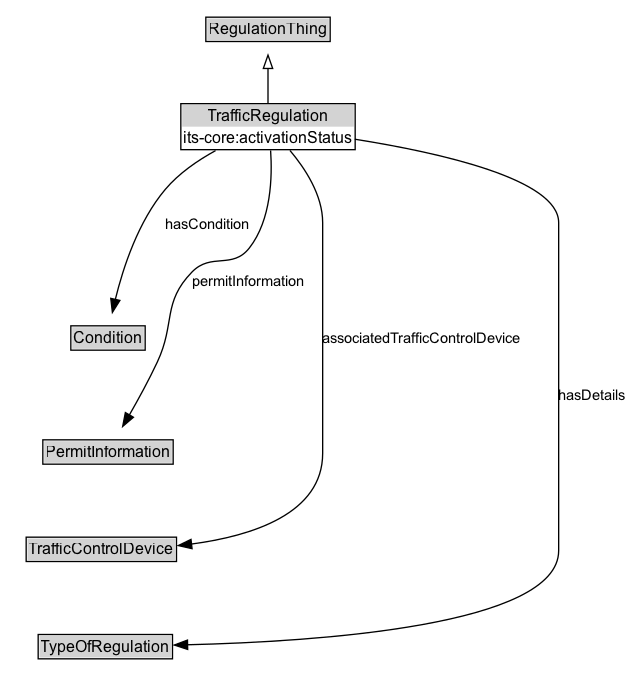

Diagram¶
Specializations of TrafficRegulation¶
| Class | Description |
|---|---|
| Coded Pair Regulation | A restriction defined by a code. |
| Coded Regulation | A restriction defined by a code. |
| Coded Regulation With Fee | A condition defined by a code. |
| Coded Regulation With Threshold | A restriction defined by a code coupled with a threshold value. |
| Textual Regulation | A textual regulation is a rule having the force of law that is established by a regulator through a traffic regulation order. |
Formalization for TrafficRegulation¶
| Property | Constraint |
|---|---|
| associatedTrafficControlDevice | only TrafficControlDevice |
| hasAssociatedRestriction | max 1 TrafficRegulation |
| hasCondition | max 1 Condition |
| hasInceptionDate | max 1 xsd:date |
| hasLegalBasis | exactly 1 |
| hasPermitType | only PermitType |
| hasRegulationCategory | min 1 RegulationCategoryCode |
| hasTerminationDate | max 1 xsd:date |
| hasTrustworthiness | max 1 Trustworthiness |
| isSuspect | max 1 SuspectStatusCode |
| its-core:hasActivationStatus | exactly 1 its-core:ActivationStatusCode |
| hasEnforcementMethod | only EnforcementMethod |
| hasLegalStatus | min 1 LegalStatusCode |
| requiresSupplementalData | only RequiredSupplementalData |
| subClassOf | RegulationThing |
| subClassOf | its-core:OfficialThing |
Other annotations¶
| Property | Value |
|---|---|
| ReqView ID | its-regulation-59 |
| dash:abstract | true |
| skos:editorialNote | The latest release of DATEX-II assigns a legalBasis to each condition rather than to the regulation. This seems odd; I have added a link for both in this model. |
| skos:editorsNote | It is unclear if PermitInformation needs to be associated directly with TrafficRegulation and why. It seems as if PermitCondition is a more appropriate way to describe the association. |
