FootpathSection

A FootpathSection is a type of TravelledWaySection that groups FootpathLinks and FootpathSegments for a useful operational purpose.

IRI: https://w3id.org/citydata/part3/v1/FootpathSection

Diagram

cluster_associated TravelledWaySection TravelledWaySection FootpathSection FootpathSection cdm1:hasProperPart FootpathSection->TravelledWaySection FootpathNetwork FootpathNetwork FootpathSection->FootpathNetwork redefines cdm1:properPartOf n66601a8392594191afae18867b22fe37b20 «unionOf» FootpathSection->n66601a8392594191afae18867b22fe37b20 redefines cdm1:hasProperPart FootpathLink FootpathLink FootpathSegment FootpathSegment n66601a8392594191afae18867b22fe37b20->FootpathLink member n66601a8392594191afae18867b22fe37b20->FootpathSegment member

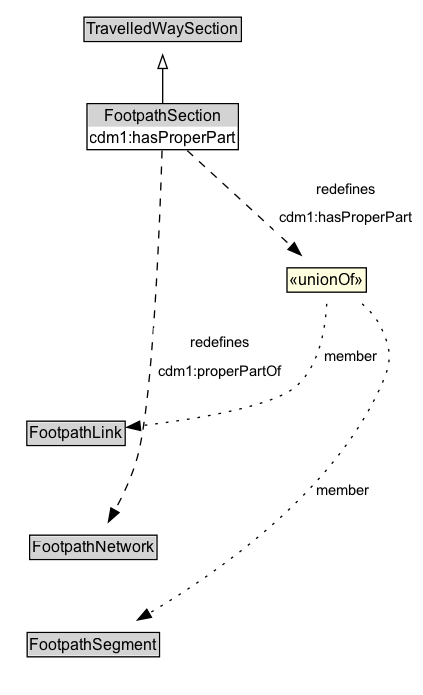

FootpathSection Diagram

Formalization for FootpathSection

Property Constraint
cdm1:hasProperPart only FootpathLink or FootpathSegment
cdm1:hasProperPart
cdm1:properPartOf only FootpathNetwork
cdm1:properPartOf only FootpathNetwork
subClassOf TravelledWaySection

Other annotations

Property Value
xsd:pattern PedestrianNetworkPattern
