RoadLink

A RoadLink is a type of TravelledWayLink and cdm2:RoadLink using a stabilized base designed for the movement of vehicles that conform to a specified set of requirements but may be used by others as well.

IRI: https://w3id.org/citydata/part3/v1/RoadLink

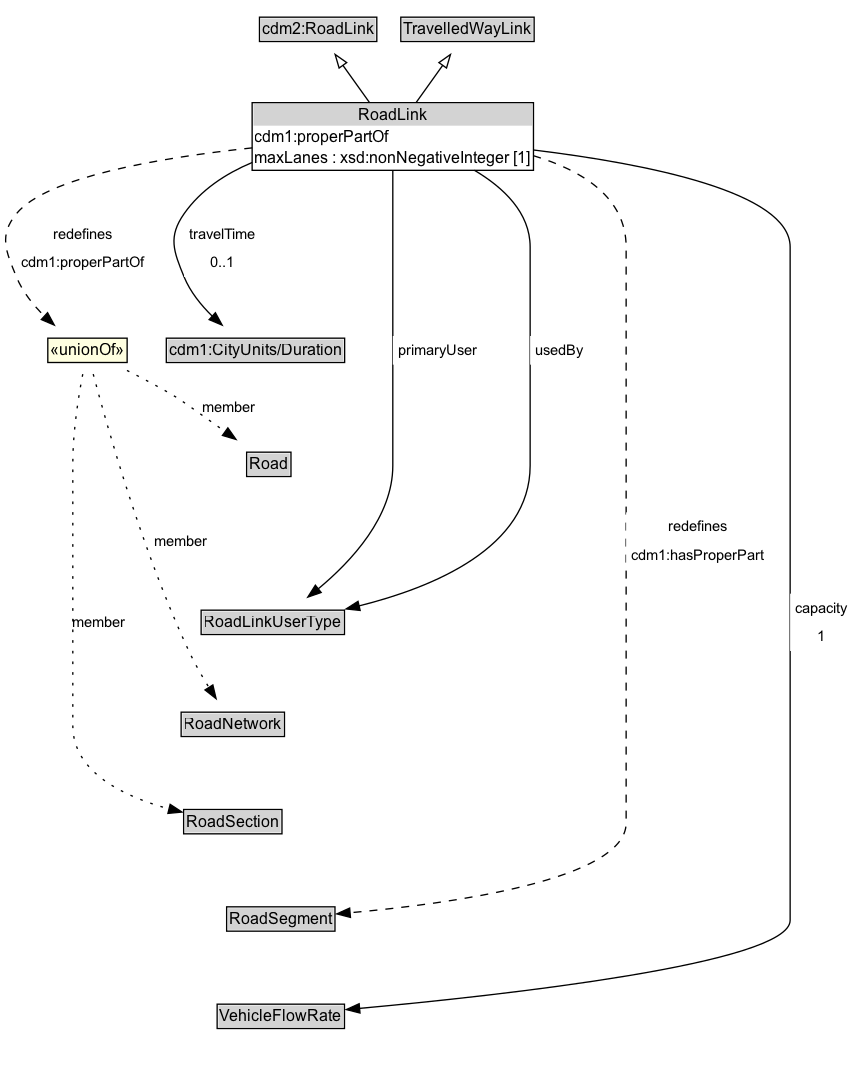

Diagram

cluster_associated cdm2_RoadLink cdm2:RoadLink TravelledWayLink TravelledWayLink RoadLink RoadLink cdm1:properPartOf maxLanes : xsd:nonNegativeInteger [1] RoadLink->cdm2_RoadLink RoadLink->TravelledWayLink cdm1_CityUnits/Duration cdm1:CityUnits/Duration RoadLink->cdm1_CityUnits/Duration travelTime 0..1 RoadLinkUserType RoadLinkUserType RoadLink->RoadLinkUserType primaryUser RoadLink->RoadLinkUserType usedBy RoadSegment RoadSegment RoadLink->RoadSegment redefines cdm1:hasProperPart VehicleFlowRate VehicleFlowRate RoadLink->VehicleFlowRate capacity 1 nf9bf95ca936a48ed91a85f16e3ee047ab12 «unionOf» RoadLink->nf9bf95ca936a48ed91a85f16e3ee047ab12 redefines cdm1:properPartOf Road Road RoadNetwork RoadNetwork RoadSection RoadSection nf9bf95ca936a48ed91a85f16e3ee047ab12->Road member nf9bf95ca936a48ed91a85f16e3ee047ab12->RoadNetwork member nf9bf95ca936a48ed91a85f16e3ee047ab12->RoadSection member

RoadLink Diagram

Class Description
Micromobility Link A MicromobilityLink is a type of RoadLink designed for micromobility vehicles.
Property Constraint
capacity exactly 1
capacity exactly 1 VehicleFlowRate
cdm1:hasProperPart only RoadSegment
cdm1:hasProperPart only RoadSegment
cdm1:properPartOf only RoadNetwork or RoadSection or Road
cdm1:properPartOf
maxLanes exactly 1
maxLanes exactly 1 xsd:nonNegativeInteger
primaryUser only RoadLinkUserType
primaryUser only RoadLinkUserType
travelTime max 1
travelTime max 1 cdm1:CityUnits/Duration
usedBy only RoadLinkUserType
usedBy only RoadLinkUserType
subClassOf cdm2:RoadLink
subClassOf TravelledWayLink

Used by classes

Class Property
Road (cdm1) cdm1:hasProperPart
Road Link User Type uses
