MicromobilityPathSection

A MicromobilityPathSections is a type of RoadSection that groups MicromobilityLinks and MicromobilityPathSegments for a useful operational purpose (e.g., assigning a speed limit, designating areas of shared use).

IRI: https://w3id.org/citydata/part3/v1/MicromobilityPathSection

Diagram

cluster_associated RoadSection RoadSection MicromobilityPathSection MicromobilityPathSection cdm1:hasProperPart MicromobilityPathSection->RoadSection MicromobilityNetwork MicromobilityNetwork MicromobilityPathSection->MicromobilityNetwork redefines cdm1:properPartOf n08b901a28ea24e5d929e965f217f15e3b20 «unionOf» MicromobilityPathSection->n08b901a28ea24e5d929e965f217f15e3b20 redefines cdm1:hasProperPart MicromobilityLink MicromobilityLink MicromobilityPathSegment MicromobilityPathSegment n08b901a28ea24e5d929e965f217f15e3b20->MicromobilityLink member n08b901a28ea24e5d929e965f217f15e3b20->MicromobilityPathSegment member

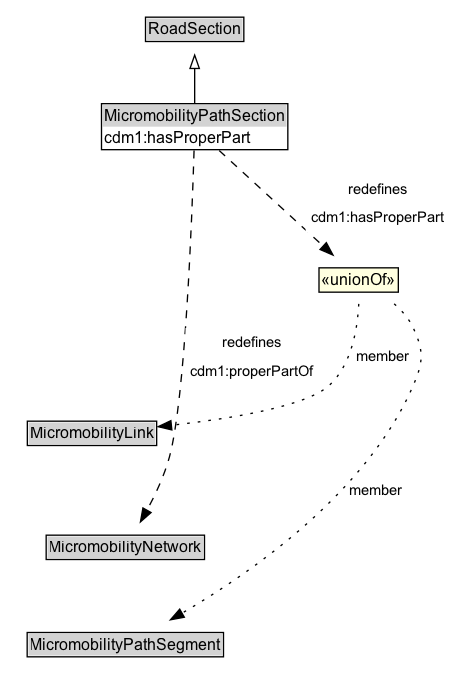

MicromobilityPathSection Diagram

Formalization for MicromobilityPathSection

Property Constraint
cdm1:hasProperPart only MicromobilityLink or MicromobilityPathSegment
cdm1:hasProperPart
cdm1:properPartOf only MicromobilityNetwork
cdm1:properPartOf only MicromobilityNetwork
subClassOf RoadSection

Other annotations

Property Value
xsd:pattern MicromobilityNetworkPattern
