TravelledWaySection¶
A TravelledWaySection is a type of NetworkElement that represents an aggregation of TravelledWayLinks and TravelledWaySegments that jointly represent a contiguous length of a path that shares the same management and operational strategies (within the scope of interest of the implementation).
IRI: https://w3id.org/citydata/part3/v1/TravelledWaySection

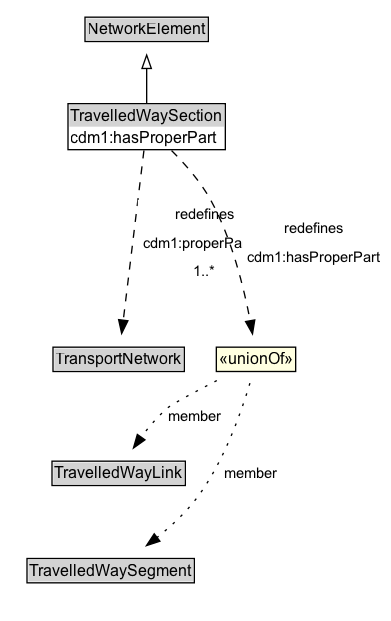

Diagram¶
Specializations of TravelledWaySection¶
| Class | Description |
|---|---|
| Footpath Section | A FootpathSection is a type of TravelledWaySection that groups FootpathLinks and FootpathSegments for a useful operational purpose. |
| Micromobility Path Section | A MicromobilityPathSections is a type of RoadSection that groups MicromobilityLinks and MicromobilityPathSegments for a useful operational purpose (e.g., assigning a speed limit, designating areas of shared use). |
| Rail Section | A RailSection is a type of TravelledWaySection that groups TrackLinks and TrackSegments for a useful operational purpose (e.g., assigning a speed limit, designating a traffic control scheme). |
| Road Section | A RoadSection is a type of TravelledWaySection that groups RoadLinks and RoadSegments for a useful operational purpose (e.g., assigning a speed limit, designating a traffic control scheme). |
Formalization for TravelledWaySection¶
| Property | Constraint |
|---|---|
| cdm1:hasProperPart | only TravelledWayLink or TravelledWaySegment |
| cdm1:hasProperPart | |
| cdm1:properPartOf | only TransportNetwork |
| cdm1:properPartOf | min 1 |
| cdm1:properPartOf | min 1 TransportNetwork |
| subClassOf | NetworkElement |
Other annotations¶
| Property | Value |
|---|---|
| xsd:pattern | TransportNetworkPattern |
