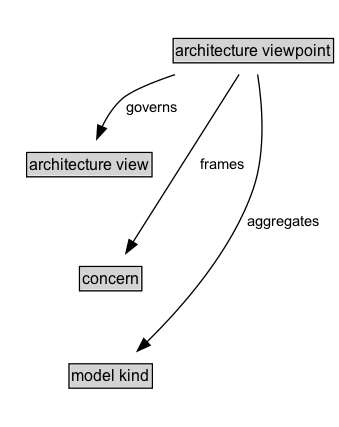

architecture viewpoint¶

work product establishing the conventions for the construction, interpretation and use of architecture views to frame specific system concerns

Clause: 3.1.3.6

Source: ISO/IEC/IEEE 42010:2011, 3.6

History note: Introduced in ISO/TS 14812:2022

Specializations of architecture viewpoint¶

Class	Description
communications viewpoint	architecture viewpoint used to frame concerns related to all layers of the Open Systems Interconnection (OSI) stack and related management and security issues
enterprise viewpoint	architecture viewpoint used to frame the policies, funding incentives, working arrangements and jurisdictional structure that support the technical layers of the architecture
functional viewpoint	architecture viewpoint used to frame concerns related to the definition of processes that perform surface transport functions and data flows shared between these processes
physical viewpoint	architecture viewpoint used to frame concerns related to the assignment of functionality to physical objects and the interfaces among these physical objects
